Introduction of squeezer
Film dewatering

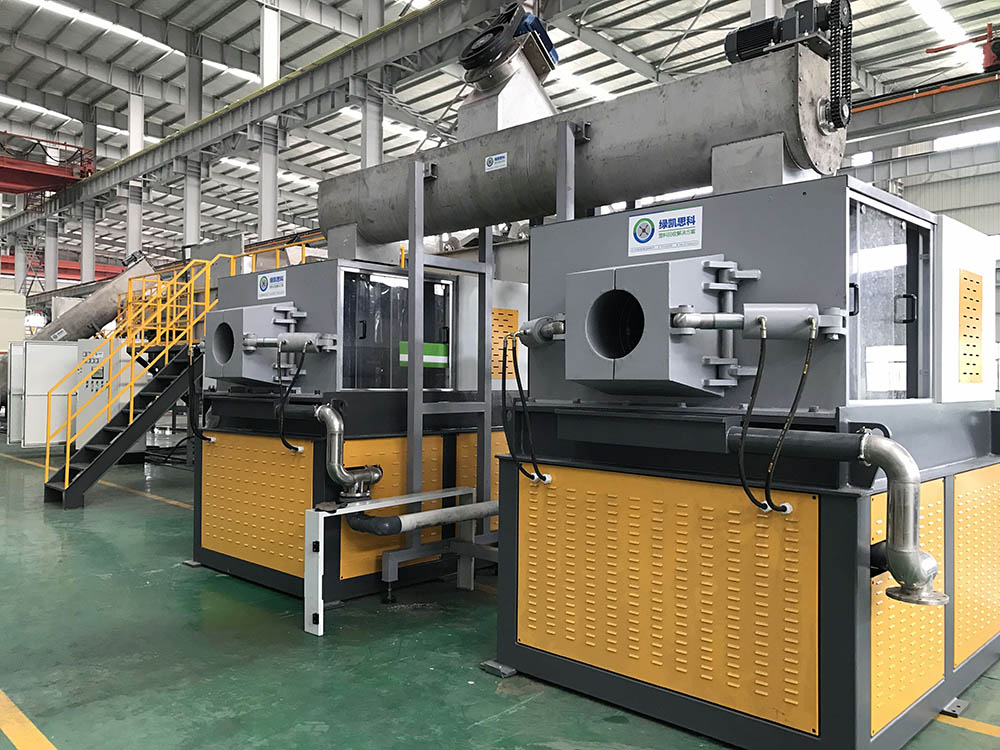

Squeezer is installed at the end of the washing line for film dewatering .
The washed LDPE film is transported into the squeezer ,inside the squeezer ,there is a special screw which running continually. LDPE film scraps will be compressed by running screw.
During pressing ,there is strong friction between LDPE film scraps and the machine , it makes friction heating, which helpful for drying .
At the outlet of the machine, there is a hydraulic valve. At the beginning it is closed , and the more LDPE film scraps compressed, the higher pressure the valve bear. and the vavle will open for discharging when hydraulic pressure reached the set point .The hydraulic locks are controlled by PLC , open/lock automatically.
In this way the material becomes compact ,heated ,and the water is removed .
After squeezer ,the film moisture will be less than 5-8%.
Features:
1)Alloy steel screw and holed cylinder with high strength and high wear resistance
2)Stepped screen hole of cylinder without block during film dewatering
3)Heavy duty supporting frame made of steel blocks
4)Stainless steel (SS304) water collecting hopper
5)Gearbox with hardened gears
6)Optional water cooling system for gearbox
7)With PLC control cabinet
|
Model
|
SQ4055
|
SQ5075
|
|
Standard capacity
|
500kg/hr
|
1400kg/hr
|
|
Standard motor power
|
55kw
|
75kw
|
|
Applicable capacity
|
400-600kg/hr
|
900-1300kg/hr
|
|
L*W*H (mm*mm*mm)
|
2330*915*1800
|
2620*1620*2400
|
|
inlet height (mm)
|
1800
|
2400
|
|
outlet height(mm)
|
1200
|
1455
|
|
Dia.of screw (mm)
|
320
|
418
|
|
inlet size(mm)
|
368*368
|
464*464
|
|
Thickness of screw blade(mm)
|
30~50
|
|
screw material
|
38CrMoAI
|
|
Thickness of screen (mm)
|
14mm
|
*Please contact us for more models information
|
